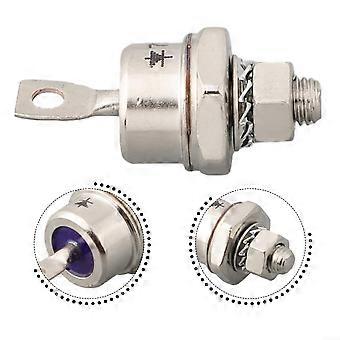

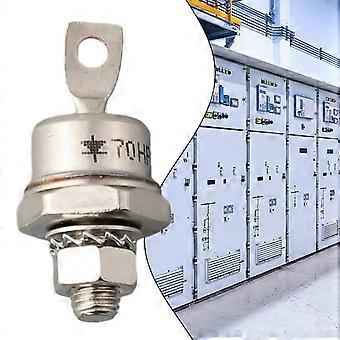

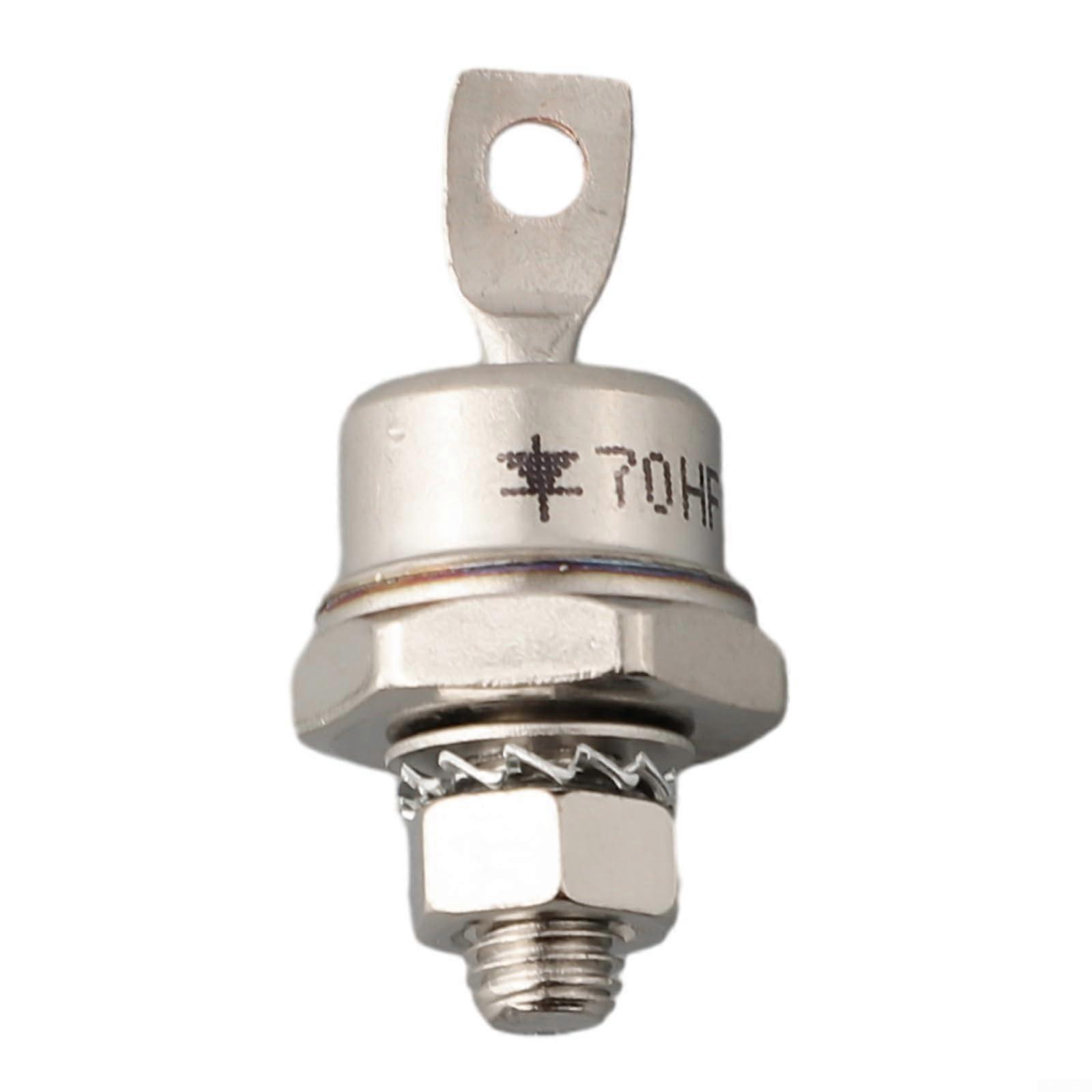

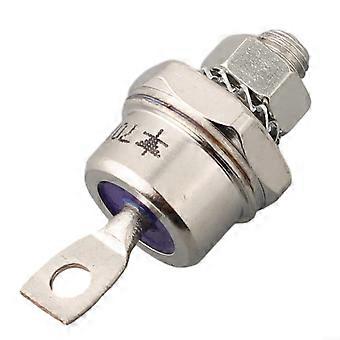

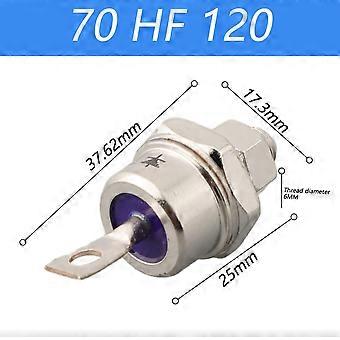

1200V Stud Mount Rectifier Diode — 25A to 85A Designed for demanding power electronics, this stud mount rectifier diode offers a 1200V voltage rating and selectable continuous current options from 25A to 85A. Available in both studcathode and studanode polarity orientations to match your circuit layout, it combines robust power handling with reliable thermal performance. Key benefits voltage and current capacity: 1200V rating and 25A to 85A options provide the headroom needed for medium and power applications. Flexible polarity mounting: available in studcathode or studanode configurations so the diode can be fitted to the circuit orientation you require. Robust surge handling: surge current capability exceeds continuous ratings to tolerate powerup pulses and shortduration overloads without compromising longterm reliability. Improved efficiency: low forward voltage drop reduces conduction losses and improves overall conversion efficiency in rectifier and converter circuits. Stable thermal performance: manufactured from grade semiconductor materials for consistent operation over varying load and temperature conditions. Fast recovery characteristics: minimizes switching losses and reduces stress in fastswitching converter topologies. Function and compatibility Function: single diode rectifier in a studmount package for mechanical strength and direct heatsink contact. Compatibility: suitable for battery charging systems, power converters, welding equipment, machine tool electronics, and motor control circuits. Mounting: stud mount design for secure electrical and thermal connection to chassis or heat sinks. Material and performance highlights Construction uses grade semiconductor materials for thermal stability and longterm performance. Minimal forward voltage drop and fast recovery for efficient power conversion. Surge capability allows safe operation during inrush events and brief overloads. Typical use scenarios Industrial battery charger: rectifies AC to DC for large battery banks while handling startup surges and maintaining low conduction losses. Welding power supply: provides robust rectification with surge tolerance to withstand arcstart pulses and transient loads. Motor control and CNC machine tool electronics: used in rectifier stages and DClink circuits where reliable thermal management and polarity flexibility are required. Select the current rating that matches your load and use the studcathode or studanode orientation that fits your chassis or heatsink layout to ensure proper installation and thermal contact.
