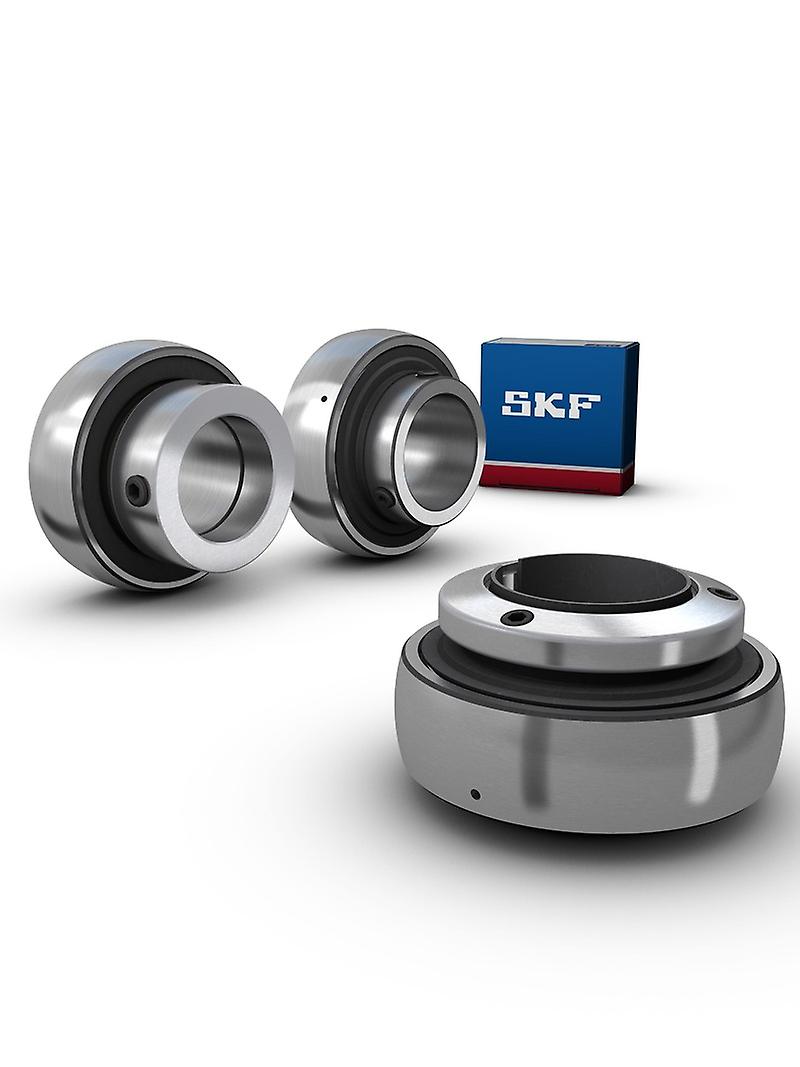

SKF YET 204 Y-Bearing With An Eccentric Locking Collar

$48.95
+ $42.99 Shipping

SKF YET 204 Y-Bearing With An Eccentric Locking Collar

  • product image
SKF YET 204 Y-Bearing With An Eccentric Locking Collar

SKF YET 204 Y-Bearing With An Eccentric Locking Collar

Price: $48.95
Sold by:
$48.95
+ $42.99 Shipping

Taxes calculated at checkout

Only 3 left in stock

We accept the following payment methods

Description

Y-bearings, with an eccentric locking collar Design: Inner ring extended on one side. Purpose specific: For agricultural applications. Sealing solution: Standard seals. Unit system: Metric. Bore diameter d: 20mm. Outside diameter D: 47mm. Overall bearing width B1: 31mm. Width outer ring C: 14mm. Outer diameter inner ring d1: 28.2mm. Outside diameter locking ring d2: 32.4mm. Width inner ring B: 21.5mm. Distance from locking device side face to thread centre B4: 4.75mm. Chamfer dimension r1,2min: 0.6mm. Distance from locking device side face to raceway centre s1: 24mm. Basic dynamic load rating C: 12.7kN. Basic static load rating C0: 6.6kN. Fatigue load limit Pu: 0.28kN. Limiting speed with shaft tolerance h6: 8500r/min. Calculation factor f0: 13. Thread grub screw G2: M6x0.75. Hexagonal key size for grub screw N: 3mm. Recommended tightening torque for grub screw N: 4Nm. Rubber seating ring: RIS 204.
  • Fruugo ID: 159154798-337693804
  • EAN: 5059633041398
