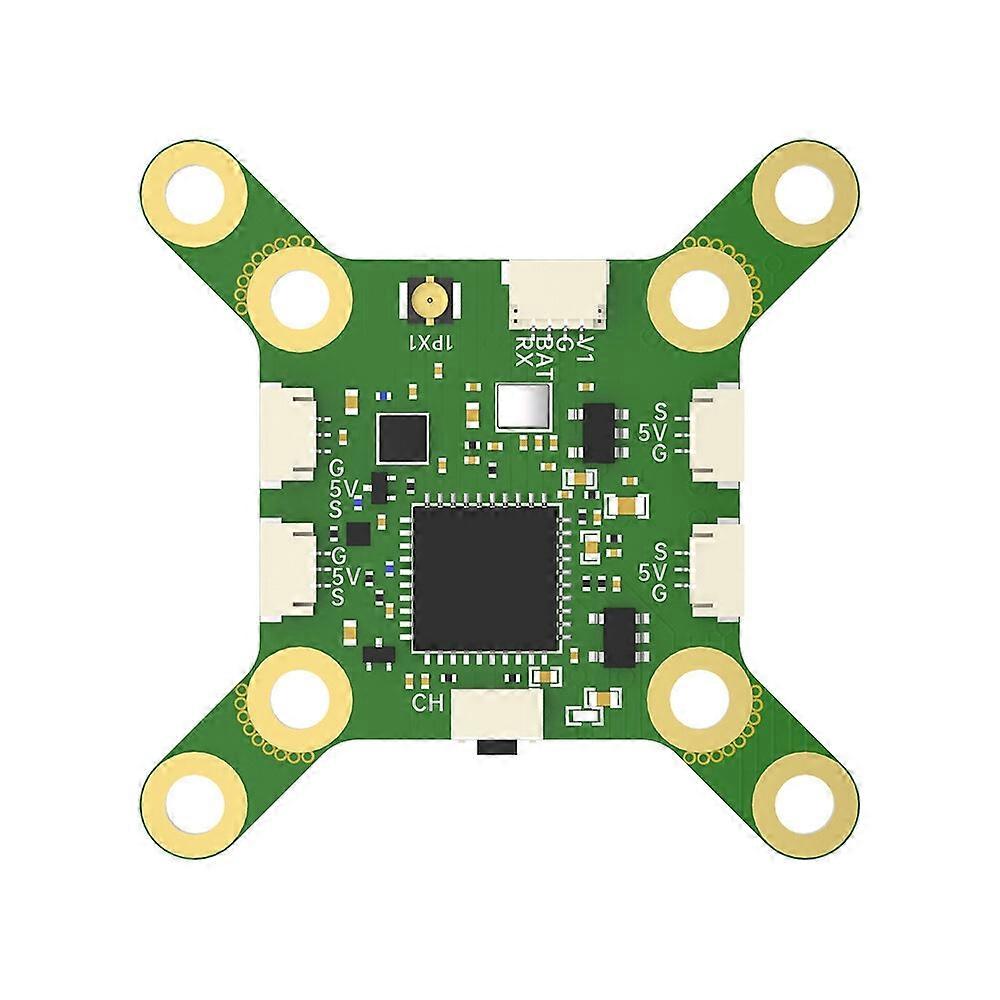

Description: Introducing our race VTX designed specifically for FPV competitions. Our product features an integrated design of video transmitter and LED control module, allowing independent control of LED strip colors and frequencies. With dual mounting holes to accommodate various customer needs. The full plug design makes for easy connectivity, with solder pads reserved on the back for customization. Features: 1.Integrate VTX with LED control module for easier and cleaner installation. 2.Separate frequency button for easy switching 3.Independent control of LED strip colors and frequency. 4.Double mounting holes: 30.5*30.5mm / 20*20mm 5.Plug and play, with solder pads reserved on the back. 6.Fixed transmitting power Specifications: Item: BLITZ RACE 25mW VTX Input voltage: DC 7-26V Volts input: 2-6S LED lamp output voltage 5V, current 2A Fixed transmitting power: 25mW(14dbm) Antenna connector: IPEX VTX input connector: SH0.8 4P LED connector: SH0.8 3P VTX instructions: 1. Adjust the frequency table: short press the CH button to switch the frequency. 2. PIT mode: long press CH button for 3 seconds to enter the PIT mode. In the PIT mode, long press for 3 seconds to exit the PIT mode. 3.LED color: long press CH button for 1 second to change the color of the LED strip 4. When using the flight control OSD to adjust the VTX, the CH button will be invalid. If you need to use the CH button to adjust the VTX, please close the serial port protocol of the flight controller to connect to the RX of VTX, or the RX connector does not connect to the flight controller. Package Included: 1 x BLITZ 5.8G 25mW RACE VTX 1 x iPex/UFL to M2 SMA F Adapter Cable 1 x Cable set
