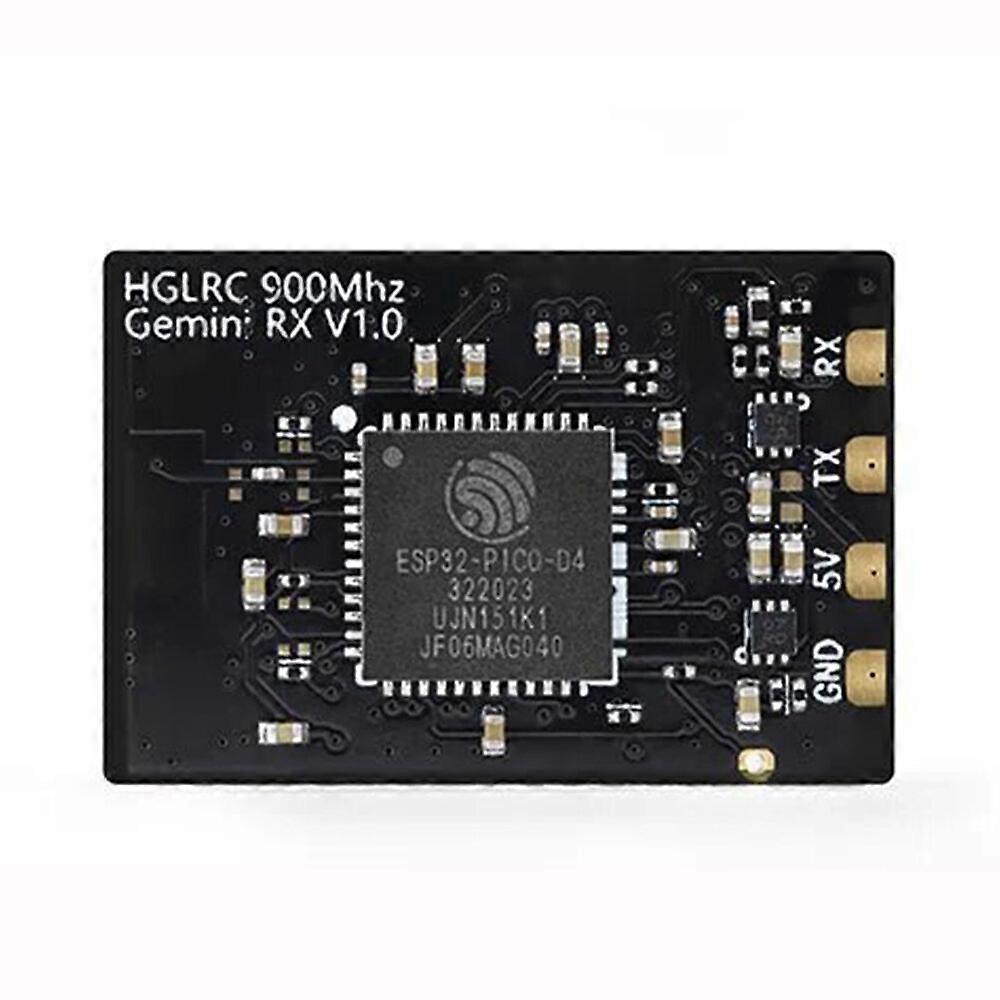

HGLRC ELRS GEMINI RX 2.4G/915Mhz Dual-Frequency Long Range Receiver for FPV Racing Drone Features: 1. Dual communication link, the antennas work at different frequencies at the same time, with super anti-interference performance; 2. True diversity dual reception, integrating dual-channel SX1276 (2.4G version SX1281) and dual-channel PA/LNA, dual-antenna omni-directional reception, stable signal; 3. Using TCXO temperature-compensated crystal oscillator, the frequency is more accurate and it is not afraid of high temperatures or severe cold, and it will not lose signals during long flights; 4. Direct plug-in connection, plug and play, eliminating the trouble of soldering and enabling quick replacement while retaining the pad design; 5. The return power of Elrs 2.4G version is up to 100mw, and the ELRS 915M version can reach up to 50mw; 6.Elrs has the characteristics of long-distance remote control, low latency, and up to 1000HZ refresh rate (915M up to 200HZ); 7. It can use WiFi to upgrade firmware; Parameters: Brand: HGLRC Item: ELRS GEMINI RX Receiver firmware: HGLRC Gemini 2.4Ghz RX/HGLRC Gemini 900Mhz RX refresh rate 2.4G:50hz-1000hz 915Mhz:25hz-200hz chip 2.4G:ESP32+2*SX1281+TCXO 915Mhz: 2*SX1276+ESP32-PICO-D4 Receiver dimensions (without antenna) 2.4G:22mm*15.24mm 915Mhz:22mm*15.24mm Weight (without antenna) 2.4G:1.36g 915Mhz:1.5g return power 2.4G:100mw 915Mhz:50mw Antenna interface: ipex1 generation Input voltage: 3.6V-5.5V Indicator light: Color RGB light Binding: The factory firmware version of HGLRC ELRS GEMINI RX dual receiver is 3.X or above. 3.X and 2.X firmware are not compatible, so the TX Module firmware needs to be upgraded to 3.X and above before binding; 1. The receiver is powered on and off 3 times continuously (power off after the light is on) 2. Observe the RGB light of the receiver. After starting from the rainbow gradient, it turns into an orange double flash state, indicating that the receiver has entered the binding state. 3. Use the ELRS remote control or TX Module to link to the receiver. If the RGB light of the receiver changes from double flashing to solid, it means the binding is successful. Product List: 1x HGLRC ELRS GEMINI RX (2.4/915) Dual Reception 1x (2.4G/915M) Long Antenna 1x (2.4G/915M) Short Antenna 1x Heat Shrink Tube
