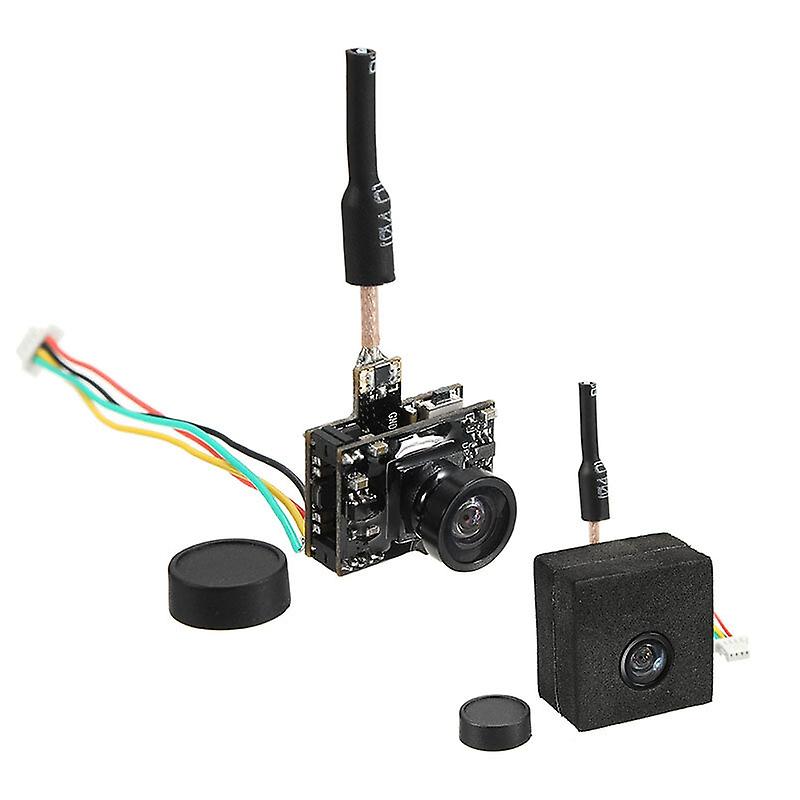

Eachine TX05 0.01/5/25/50/100/250mW Switchable w/ OSD AIO 5.8G 72CH VTX 600TVL NTSC Mini FPV Camera for RC Drone Precise details: -Specification: --Overall: Brand Name:Eachine Item NO.:TX05 Item Name:AIO FPV VTX Camera Size:19.6mm*14mm(L*W) Weight:4.9g --FPV Camera Output power:0.01/5mW/25mW/50mW/100mW/200mW (switchable) (Set output power on 0, to avoid frequency interference) Input Power:3.3-5.5V Power consumption:540 mA Sensor:1/3 "CMOS Camera Resolution:600TVL Lens:M7 10mm Lens Angle:120 ° FOV horizontal viewing angle 150 ° DFOV diagonal perspective Mini illumination:1 lux Format:NTSC/PAL --Transmitter Support video format:NTSC/PAL Output Impedance:50 Ohm Output signal strength:13±1dbmdBm ·Output Power: 0.01mW: -20dBm 5mW: 8dBm 25mW: 15dBm 50mW: 17.5dBm 100mW: 21dBm 200mW: 23dBm Wireless Channel:72CH Range:400m Antenna:5.8G Brass Antenna Working Voltage:3.3-5.5 V ·Current： 0.01mW: 260-99mA 5mW: 300-140mA 25mW: 370-170mA 50mW: 470-220mA 100mW: 530-255mA 200mW: 800-540mA Audio carrier:NO --Battery:1S Lipo Battery (3.7-4.2V) --Frequency Table:5.8GHz 9 bands 72 channels with Raceband: 5325-5945 MHZ -Power Level Instruction: 1) 0.01Mw: LED display "1" and blink twice. 2) 5Mw: LED display "2" and blink twice. 3) 25Mw: LED display "3" and blink twice. 4) 50Mw: LED display "4" and blink twice. 5) 100Mw: LED display "5" and blink twice. 6) 250Mw: LED display "6" and blink twice. -Operation Instruction: 1. On the LED display the Letter means BAND, digits means CHs. Digits blink twice quickly means POWER Level. 2. The default power is 0.01Mw. Setting will restore the last band, channel and power level if no opretation act within 5 second. 3. Short press the button to change CH from 1 to 8. 4. Long press the button (about 2s) when letter blink, then short press to change BAND from A to H. 5. Long press the button (about 4s) when digit blink twice quickly, then short press the button to change POWER Level from 1 to 6. -Features: - AIO FPV camera, transmitter , atnenna, OSD 4 in one function limit size and weight. - Output power 0.01mw/5mw/25mw/25mw/50mw/100mw/250mw, 6 level one key to Switchable. - OSD enabled,support video in / video out. - Anticollision EVA case. - 9 bands 72 channels with Raceband. - Power failure memory, remember the frequency channel after powering off. - 120 ° FOV horizontal viewing angle of 150 ° DFOV diagonal perspective. - 5.8G Brass antenna to Antirust and get strong signal. - Plug and play, designed for DIY. -Package Included: 1 x Eachine TX05 Camera 1 x Foam Protection Cover 1 x User Manual
