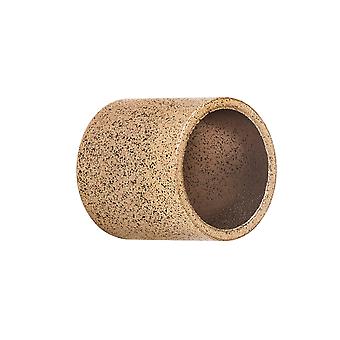

Bowman Oilite AM030503 Plain Sintered Bronze Bush

$11.95
+ $42.49 Shipping

Bowman Oilite AM030503 Plain Sintered Bronze Bush

  • product image
Bowman Oilite AM030503 Plain Sintered Bronze Bush

Bowman Oilite AM030503 Plain Sintered Bronze Bush

Price: $11.95
Sold by:
$11.95
+ $42.49 Shipping

Taxes calculated at checkout

Only 5 left in stock

We accept the following payment methods

Description

Product Details: Inner Diameter: 3. Outer Diameter: 5. Length: 3. Tolerance Range: UK Standard. Material Specification: Structure: Oil impregrated sintered bronze. Max PV (N/mm2): 14. Max Static Load: (N/mm2): 50. Max Dynamic Load (N/mm2): 14. Max Sliding Speed (m/s): 5. Operating Temperature: -60 to 200 (dependant on lubrication). Density (g/cm3): 6.6 Radial Crushing Strength (K Min M/mm2): 160. Tolerance & Fittings (Metric): Inside Diameter: Min: 3.002 Max: 3.012 Tolerance: G7. Outside Diameter: Min: 5.019. Max: 5.031. Tolerance: s7. Overall Length: Min: 2.930 Max: 3.070 Tolerance: js13 Recommended Housing Size: 5.000 5.012 H7 Shaft Diameter: Min: 2.984 Max: 2.994 Tolerance: f7 Fitting Pin Size: Min: 3.002 Max: 3.006 Tolerance: m5 Concentricity Max: Min: 0.030 Max: 0.030 Tolerance: IT9 Inside Diameter When Fitted: Min: 3.000 Max: 3.010 Tolerance: H7 PV Calculation: Max RPM: 31830.99 Max Load (KG): 45.872 Max PV Factor (N/mm2 x m/s): 1.8
  • Fruugo ID: 155817612-330055877
  • EAN: 0617748052125
