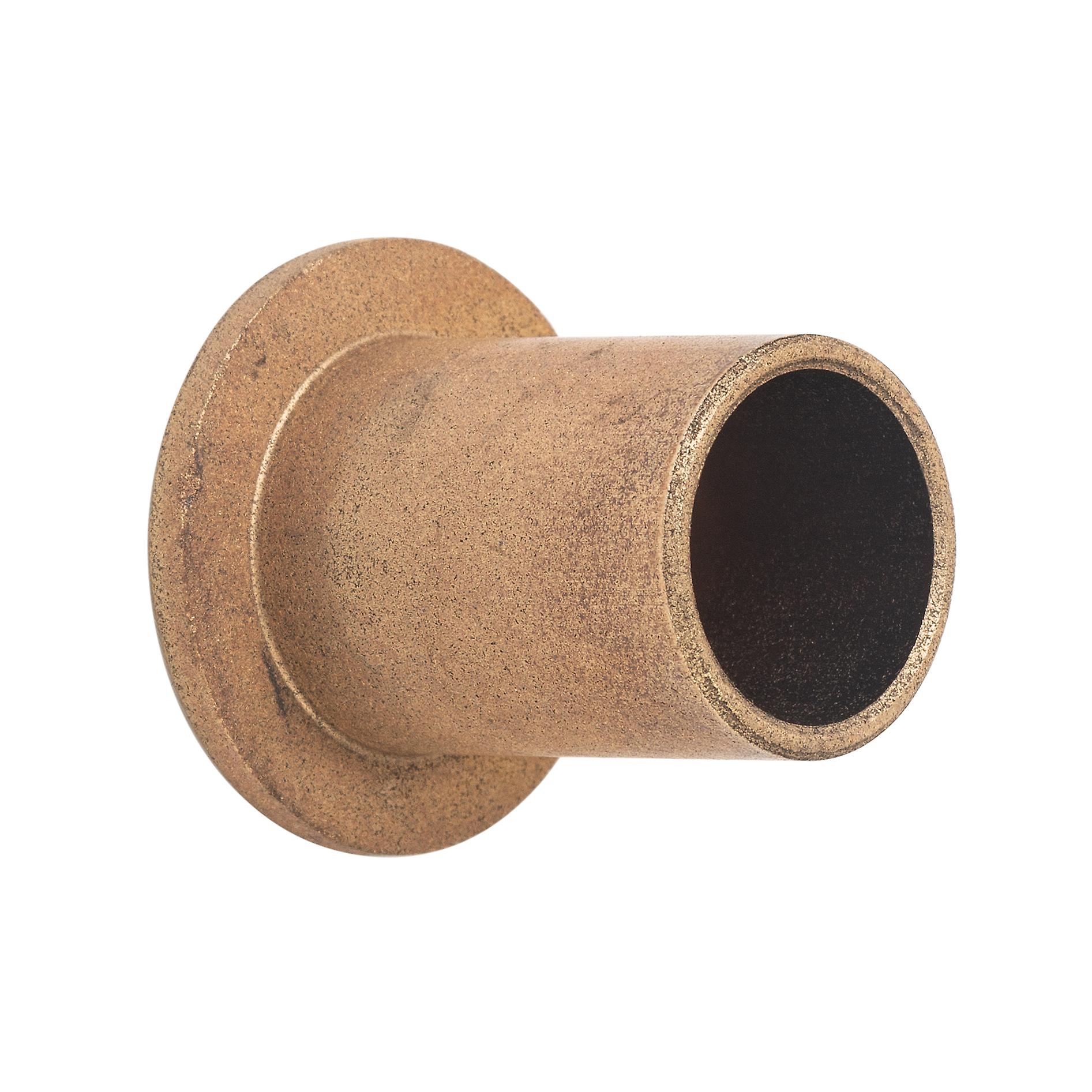

Bowman Oilite AL202425 Flanged Sintered Bronze Bush

$15.95
+ $43.49 Shipping

Bowman Oilite AL202425 Flanged Sintered Bronze Bush

  • product image
Bowman Oilite AL202425 Flanged Sintered Bronze Bush

Bowman Oilite AL202425 Flanged Sintered Bronze Bush

Price: $15.95
Sold by:
$15.95
+ $43.49 Shipping

Taxes calculated at checkout

Only 5 left in stock

We accept the following payment methods

Description

Product Details: Inner Diameter: 20. Outer Diameter: 24. Length: 25. Tolerance Range: UK Standard. Flange Thickness: 3 Flange Diameter: 30 Material Specification: Structure: Oil impregrated sintered bronze. Max PV (N/mm2 x m/s): 1.8. Max Static Load: (N/mm2): 50. Max Dynamic Load (N/mm2): 14. Max Sliding Speed (m/s): 5. Operating Temperature: -60 to 200 (dependant on lubrication). Density (g/cm3): 6.6 Radial Crushing Strength (K Min M/mm2): 160. Tolerance & Fittings (Metric): Inside Diameter: Min: 20.007 Max: 20.028 Tolerance: G7. Outside Diameter: Min: 24.035. Max: 24.056. Tolerance: s7. Overall Length: Min: 24.835 Max: 25.165 Tolerance: js13 Flange Thickness Tolerance: Min: 2.930 Max: 3.070 Tolerance: js13 Flange Diameter Tolerance: Min: 29.835 Max: 30.165 Tolerance: js13 Recommended Housing Size: 24.000 24.021 Tolerance: H7 Shaft Diameter: Min: 19.959 Max: 19.980 Tolerance: f7 Fitting Pin Size: Min: 20.008 Max: 20.017 Tolerance: m5 Concentricity Max: Min: 0.052 Max: 0.052 Tolerance: IT9 Inside Diameter When Fitted: Min: 20.000 Max: 20.021 Tolerance: H7 PV Calculation: Max RPM: 4774.648 Max Load (KG): 2548.42 Max PV Factor (N/mm2 x m/s): 1.8
  • Fruugo ID: 155817566-330055829
  • EAN: 0617748051777
