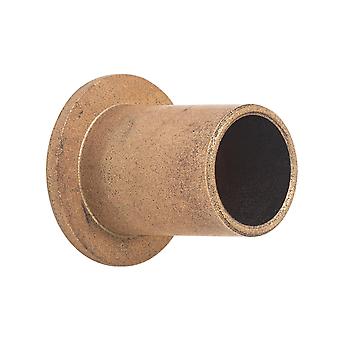

Product Details: Inner Diameter: 15. Outer Diameter: 21. Length: 20. Tolerance Range: UK Standard. Flange Thickness: 3 Flange Diameter: 27 Material Specification: Structure: Oil impregrated sintered bronze. Max PV (N/mm2 x m/s): 1.8. Max Static Load: (N/mm2): 50. Max Dynamic Load (N/mm2): 14. Max Sliding Speed (m/s): 5. Operating Temperature: -60 to 200 (dependant on lubrication). Density (g/cm3): 6.6 Radial Crushing Strength (K Min M/mm2): 160. Tolerance & Fittings (Metric): Inside Diameter: Min: 15.006 Max: 15.024 Tolerance: G7. Outside Diameter: Min: 21.035. Max: 21.056. Tolerance: s7. Overall Length: Min: 19.835 Max: 20.165 Tolerance: js13 Flange Thickness Tolerance: Min: 2.930 Max: 3.070 Tolerance: js13 Flange Diameter Tolerance: Min: 26.835 Max: 27.165 Tolerance: js13 Recommended Housing Size: 21.000 21.021 Tolerance: H7 Shaft Diameter: Min: 14.966 Max: 14.984 Tolerance: f7 Fitting Pin Size: Min: 15.007 Max: 15.015 Tolerance: m5 Concentricity Max: Min: 0.052 Max: 0.052 Tolerance: IT9 Inside Diameter When Fitted: Min: 15.000 Max: 15.018 Tolerance: H7 PV Calculation: Max RPM: 6366.198 Max Load (KG): 1529.052 Max PV Factor (N/mm2 x m/s): 1.8
