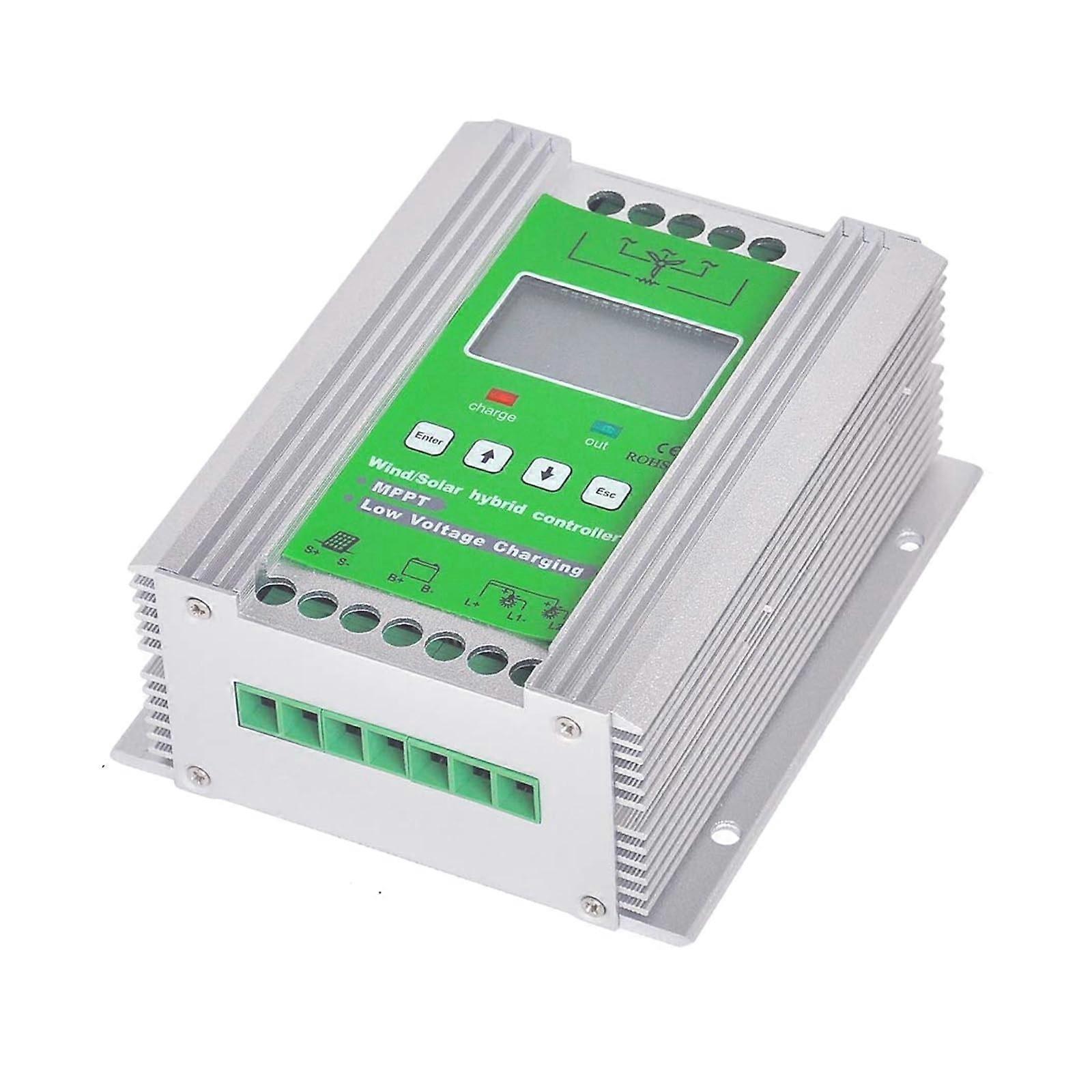

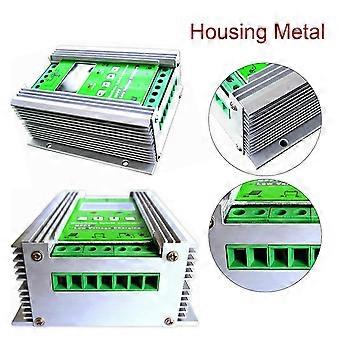

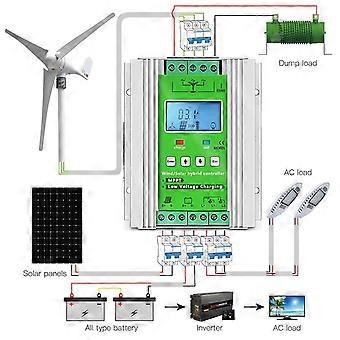

Wind Solar Hybrid Charge Controller for 12V and 24V Systems Overview A versatile hybrid charge controller engineered for combined wind and solar systems. It automatically matches 12V or 24V battery banks and uses advanced control methods to maximize energy capture while protecting equipment and batteries. Key Benefits Dual control modes for wind and solar: wind turbine generator mode with booster technology for improved performance in low wind speeds, and PWM solar charging implemented with MOS tube series connection for efficient photovoltaic charging. Stepless unloading with external dumpload resistance: maintains stable turbine operation and prevents overspeed through automatic dumpload control. A load resistance is included in the package. Comprehensive protection suite: lightning protection, overvoltage automatic braking, reversed battery connection protection, open circuit protection, reversed solar load protection, load voltage protection, overload protection and more to safeguard system components. Durable aluminum alloy housing: heat dissipation for reliable operation in varied environments. Flexible load support: supports two DC loads and provides four operational load modes to match common control strategies. User interface: custom LCD display with four operation keys for clear status readout and straightforward configuration. Automatic voltage recognition: detects and configures for 12V or 24V battery systems without manual switching. Technical Highlights Hybrid charging method tailored for windsolar street lights and home windsolar systems. Wind charging uses Booster technology for better startup and lowwind performance. Solar charging uses PWM control via MOS tube in series to increase charging efficiency. Includes stepless unloading function requiring an external dumpload resistor, supplied with the controller. Typical Applications Offgrid street lighting combining small wind turbines and solar panels. Remote or rural home windsolar systems for battery charging and DC load supply. Cabins, telecom shelters, or other installations requiring reliable hybrid renewable charging and load management. Package Contents 1 x Wind Solar Hybrid Controller 1 x Load Resistance This controller is designed for reliable, efficient energy management in combined wind and solar installations, offering flexible control, robust protection, and a userfriendly interface.
