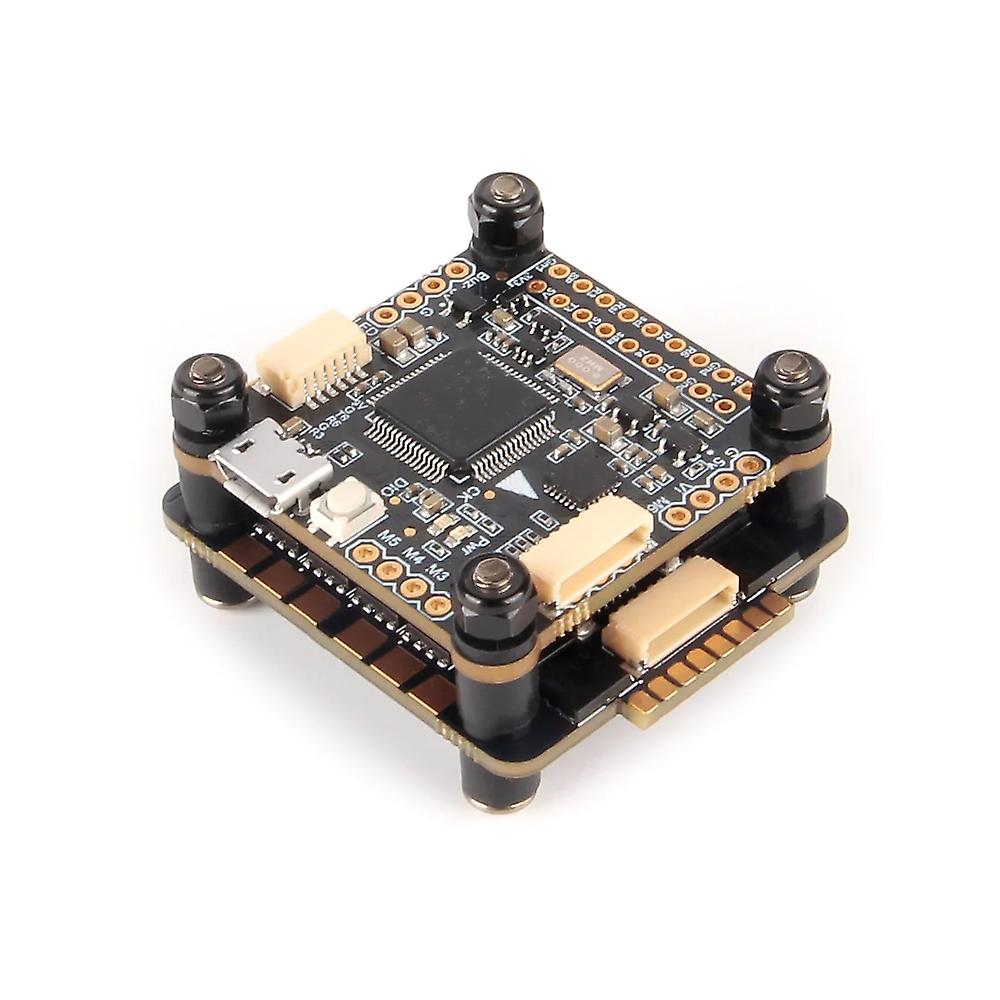

30.5x30.5mm Holybro KAKUTE F4 V2.4 Tekko32 F4 Metal 4in1 65A ESC Stack F4 MPU6000 OSD Flight Control

$199.00
+ $14.49 Shipping

30.5x30.5mm Holybro KAKUTE F4 V2.4 Tekko32 F4 Metal 4in1 65A ESC Stack F4 MPU6000 OSD Flight Control

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
30.5x30.5mm Holybro KAKUTE F4 V2.4 Tekko32 F4 Metal 4in1 65A ESC Stack F4 MPU6000 OSD Flight Control

30.5x30.5mm Holybro KAKUTE F4 V2.4 Tekko32 F4 Metal 4in1 65A ESC Stack F4 MPU6000 OSD Flight Control

  • Brand: Unbranded
RRP: $329.00
Price: $199.00
You save: $130.00 (39%)
Sold by:
$199.00
+ $14.49 Shipping

Taxes calculated at checkout

In stock

We accept the following payment methods

Description

30.5x30.5mm Holybro KAKUTE F4 V2.4 Tekko32 F4 Metal 4in1 65A ESC Stack F4 MPU6000 OSD Flight Controller 5V 9V BEC Support Analog Digital HD Atlatl HV V2 0.5-800mW VTX for RC Drone FPV Racing- NO VTX Precise details: Specification: Brand: Holybro Model: KAKUTE F4 V2.4 Stack Optional Version: NO VTX Kakute F4 v2.4 Flight Controller MCU: STM32F405 IMU: MPU6000 Barometer: BMP280 OSD: AT7456E 5x UARTs (1,3,4,4,6,7) 128 Mbit Dataflash chip Battery input voltage: 2S-8S BEC 9V/3A - Optimized for DJI O3 Air unit BEC 5V/2A 7x PWM Outputs (6 Motor Output, 1 LED) Supports serial receivers (SBUS, iBus, Spektrum, TBS CRSF, ESLR). Mounting - 30 x 30mm, Φ4mm hole with M3 Grommets Dimension - 37x37mm Weight - 7g JST-SH1.0_8pin port (For 4in1 ESCs) JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX) Tekko32 F4 Metal 4in1 65A ESC Continuous Current: 65A x4 Burst Current: 75A x4 Supports 4-6S battery Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc. ESC telemetry Supported Onboard analog current sensor No output BEC BLHeli_32 firmware 1000uf 35v capacitor included (highly recommended for 6s setup) Amperage meter scale ratio: 180 Dimensions: 43 x 44mm / Weight: 15.8g Mounting holes: M4 30.5x30.5mm (M3 grommets included) Features: New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz) PWM Frequency: 16k to 96k Metal-cased MOSFET for excellent heat dissipation Massive on-board capacitance for noise filtering at 2068uf 3 oz copper PCB design to allow bigger current and better heat dissipation Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit. NO VTX Version：without VTX Module Package Included: NO VTX Version1x KAKUTE F4 V2.4 FC 1x Tekko32 F4 Metal 4in1 65A ESC 1x Electrolytic capacito: 1000uF 35v 1x 8pin to 8pin 1mm pitch 65mm cable 1x 8pin to 8pin 1mm pitch 25mm cable 1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System) 1x JST SH 6pin 100mm cable(for Caddx HD Systems)
  • Fruugo ID: 300941487-674008397

Product Safety Information

Please see the product safety information specific to this product outlined below

The following information is provided by the independent third-party retailer selling this product.

Product Safety Labels

CE Mark
Safety Warnings: Replacement must be performed with the assistance of a professional,Use of incompatible accessories and equipment may result in damage to the equipment.
