20mmx20mm Happymodel CruxF405HD ELRS AIO 3in1 Flight Controller Builtin UART ELRS 2.4G RX 20A ESC fo

$104.00
+ $9.99 Shipping

20mmx20mm Happymodel CruxF405HD ELRS AIO 3in1 Flight Controller Builtin UART ELRS 2.4G RX 20A ESC fo

  • Brand: Unbranded
  • product image
20mmx20mm Happymodel CruxF405HD ELRS AIO 3in1 Flight Controller Builtin UART ELRS 2.4G RX 20A ESC fo

20mmx20mm Happymodel CruxF405HD ELRS AIO 3in1 Flight Controller Builtin UART ELRS 2.4G RX 20A ESC fo

  • Brand: Unbranded
RRP: $179.00
Price: $104.00
You save: $75.00 (41%)
Sold by:
$104.00
+ $9.99 Shipping

Taxes calculated at checkout

In stock

We accept the following payment methods

Description

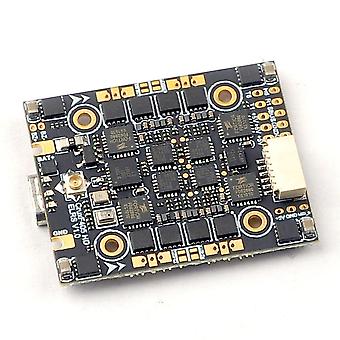

20mmx20mm Happymodel CruxF405HD ELRS AIO 3in1 Flight Controller Builtin UART ELRS 2.4G RX 20A ESC for Toothpick / LR RC FPV Racing Drone Precise details: Introduction: The CruxF405HD ELRS AIO flight controller comes with integrated UART 2.4GHz ExpressLRS receiver and 20A Blheli_s ESC(Bluejay firmware preinstalled) which could support 24s battery. Bigger Mosfet could support high to 20A currents would be better for 24S toothpick drone or long range FPV drone. Reserved 6 pin socket for DJI HD equipment plug and play. It´s a great solution of build HD digital FPV drone . -Specifications: Brand: Happymodel Model: CruxF405HD ELRS AIO -Flight controller: MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: ICM42688 (SPI connection) Mount hole size: 20x20mm Power supply: 2~4S battery input (DC 8.7V17.4V) Builtin 20A(each) Blheli_S 4in1 ESC Builtin Serial ExpressLRS 2.4G (Default connected to UART2) Builtin BMP280 Barometer Builtin 8MBp blackbox Builtin voltage meter sensor , voltage meter scale 110 Builtin current meter sensor , current meter scale 470 Flight controller firmware target: BETAFLIGHTF4 -Onboard 4in1 ESC: MCU upgraded to EFM8BB21 Power supply: 2-4S LiPo/LiPo HV (7v/17v) Currents: 20A continuous peak 25A (5 seconds) Support BLHeliSuite programmable Factory firmware: Bluejay 0.19.2 Firmware target: F_H_40_48_v0.19.2 Default protocol: DSHOT150/DSHOT300/DSHOT60 -Onboard UART ExpressLRS 2.4GHz Receiver: Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna plug: IPEX Telemetry output Power:
  • Fruugo ID: 307085499-687785788
  • EAN: 6901394871228

Product Safety Information

Please see the product safety information specific to this product outlined below

The following information is provided by the independent third-party retailer selling this product.

Product Safety Labels

CE Mark
Safety Warnings: Replacement must be performed with the assistance of a professional,Use of incompatible accessories and equipment may result in damage to the equipment.
