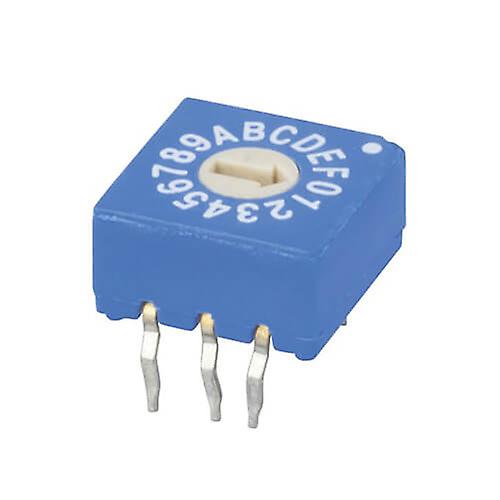

16 POSITION Binary Coded Dil Rotary Switches Moulded Fully Sealed Durable

$34.95
+ $20.49 Shipping

16 POSITION Binary Coded Dil Rotary Switches Moulded Fully Sealed Durable

  • product image
  • product image
16 POSITION Binary Coded Dil Rotary Switches Moulded Fully Sealed Durable

16 POSITION Binary Coded Dil Rotary Switches Moulded Fully Sealed Durable

Price: $34.95
Sold by:
(Premium Seller)
$34.95
+ $20.49 Shipping

Taxes calculated at checkout

In stock

We accept the following payment methods

Description

These tiny switches are designed for PCB use. These pins are moulded in and fully sealed. The body is moulded in UL 94V-0 flame retardant plastic. Specifications: DC current rating : 25A DC Voltage : 24V Operating Temperature : 70DegC Length : 10mm Width : 10mm Height : 5mm Mounting Method : PCB Attachment / Securing Method : Snap-in Packaged Volume : 0.01l Packaged Weight : 0kg Packaged Length : 3.5cm Packaged Width : 2.2cm Packaged Height : 0.8cm Switch Type : RotaryDIL Throws / Positions : 16pos Cycle Life : 20000 cycles Contact Resistance : 100mΩ Insulation Resistance : 1000MΩ Dielectric Strength : 250V Contact rating: Switching: 25mA@24VDCNon Switching: 100mA@50VDCRotational Torque Required: 500gf-cmVibration: Per MIL-STD-202F Method 204DSolderability After flux: 230 +/-5DegC for 5 +/- 0.5 sec- 0 through F output
  • Fruugo ID: 374267696-810791926
  • EAN: 9319236849866
